PRODUCT

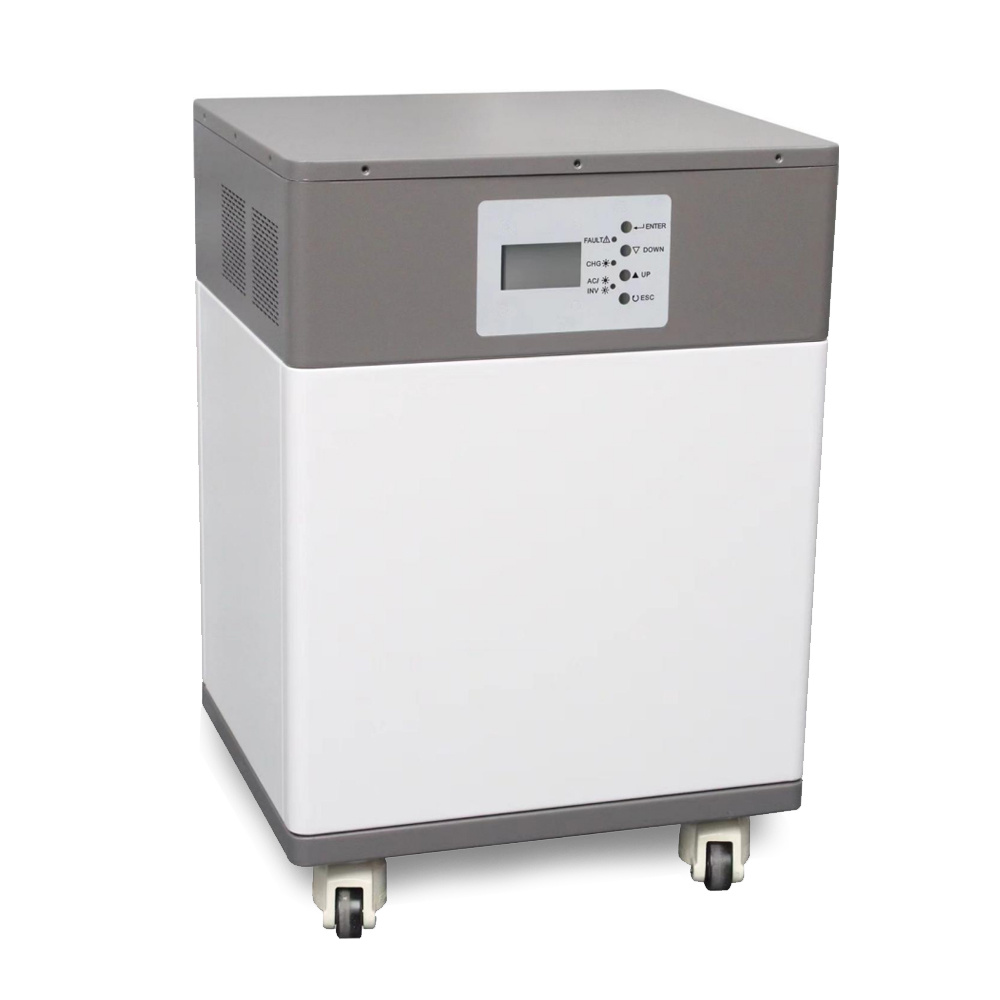

5500W 6.216KWH 220V portable power supply
keyword：
Optimizer PV solution
5500W 6.216KWH 220V portable power supply
Product parameters:
Power :5500W
Battery pack: 105ah*3.7V*16
Battery capacity: 6.216KWH
Battery: ternary lithium battery
Voltage range: 90-280VAC 3V(normal mode)170-280VAC 3V(UPS mode)
PV charging mode: MPPT
PV Maximum input power: 5500W
PV Maximum input voltage: 500VDC
PV Maximum input current: 18A
PV Maximum charging current :100A
Maximum charging current :60A
Output voltage: 220/230/240VAC
With 5500W solar input interface.
With 3000W mains charging power.
Provides the UPS function.
Size :430*365*545mm
Weight :56KG
Product features:
1. Smart digital LCD power display, clear and clear.
2. Small and beautiful, does not take up space
3. Ternary lithium battery, cycle life 3000+
4. Support solar charging, mains charging, vehicle charging, suitable for various scenarios
5. High power 5500W output, support a variety of equipment power supply, not afraid of any cold and heat (-20 ~ 60°).
6. High degree of integration, simple wiring and installation
7. More professional pure chord wave current, safe to use.
8. Intelligent heat dissipation protection, over voltage/overload/over temperature/short circuit/over discharge.
FAQ
Surface scratches and cracks
Reasons: The surface of the solar panel may be scratched or cracked for various reasons (such as external impact, improper installation, etc.).
Impact: These damages will reduce the efficiency of light absorption, thus affecting the power generation effect.
Treatment method: Regular cleaning and inspection, repair in time after finding damage, such as using transparent tape to cover small cracks.
Snail tracks or worm tracks
The phenomenon: The short, thin dark lines that appear on the surface of solar panels are unrelated to real snails and are the product of oxidation.
Cause: Usually caused by microscopic cracks in the panel or defective front metallized silver paste during manufacturing.
Impact: Although it mainly affects the appearance of the module, it has no significant impact on efficiency.
Potential induced degradation (PID)
Cause: Stray current caused by the mismatch between the voltage of the module and the ground.
Impact: Can reduce the power output of photovoltaic devices by one-third.
Prevention: Using a micro inverter can reduce the occurrence of PID, because the micro inverter does not allow the voltage to be too high.
